| Manufacturer | Mitsumi / Newtronics |
||
|---|---|---|---|
| Model | D509V | ||
| Density | HD, DD/2D | ||
| Sides | DS/2S, SS/1S | ||
| Rotation speed | 300, 360 | ||
| Maximum seekable tracks | 84 | ||
| Interface | Shugart (PC-AT compatible) |
||
| Data Connnector | 34 position card edge | ||
| Power Connnector | 4 pin Molex | ||
| Head movement | Leadscrew | ||
| Head loading | Mechanical | ||
| Disk loading | Lever | ||
| Known colors |
|
Mitsumi/Newtronics D509V
The D509V is a 5.25“ double sided high density floppy drive made by Mitsumi and Newtronics. It uses a leadscrew to facilitate head movement and locks the disk with a lever. Head loading is done with via mechanical linkage.

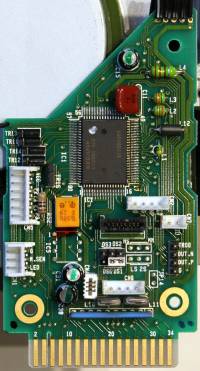

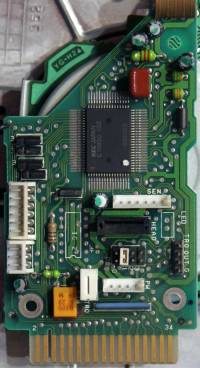

It uses the TSD 2 V-0 control board and the Mitsumi M90BCL-3 or the Kumagaya 771N1 motor board.
